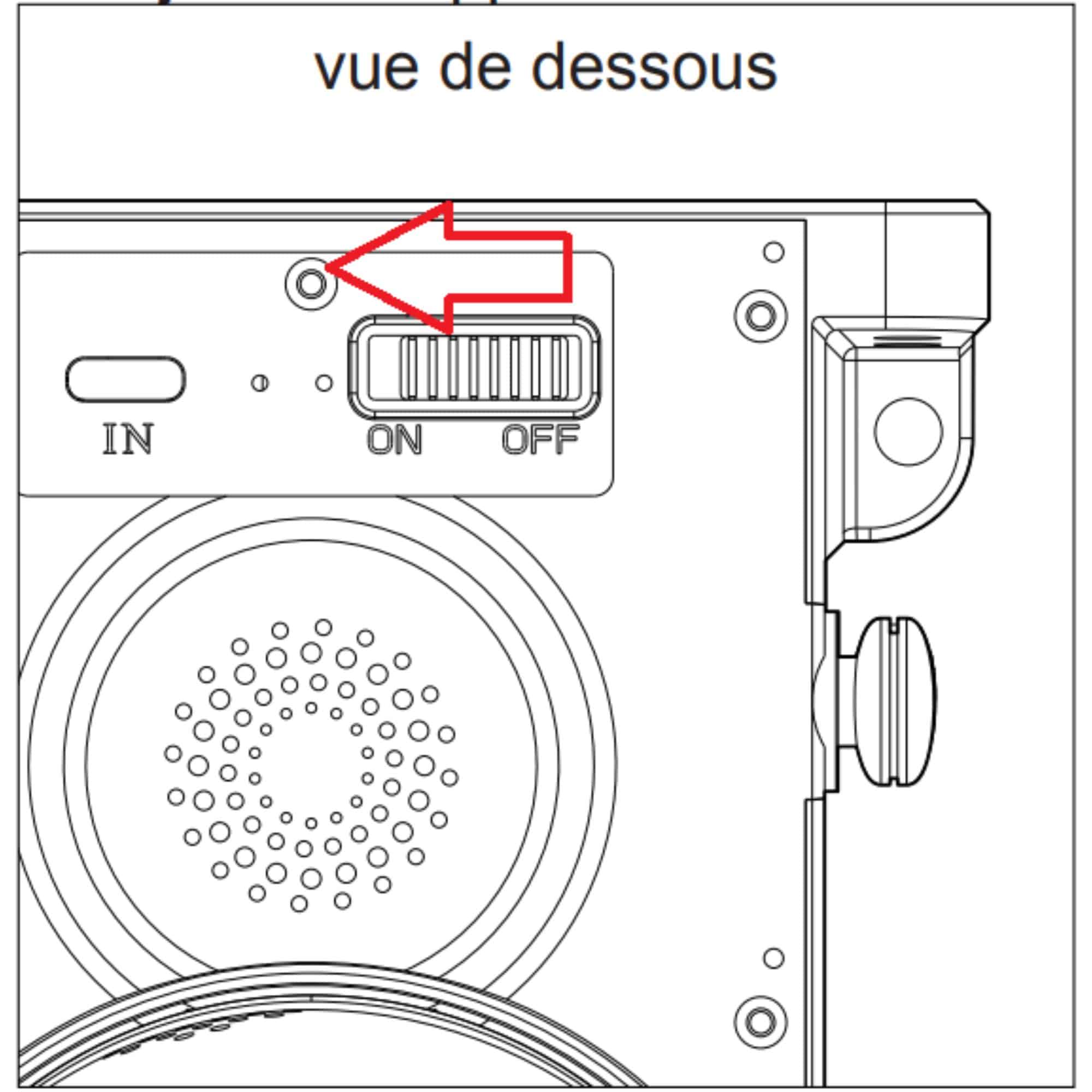

• Before connecting, please check that the camera is powered by its AC adapter and that the ON/OFF switch is set to ON.

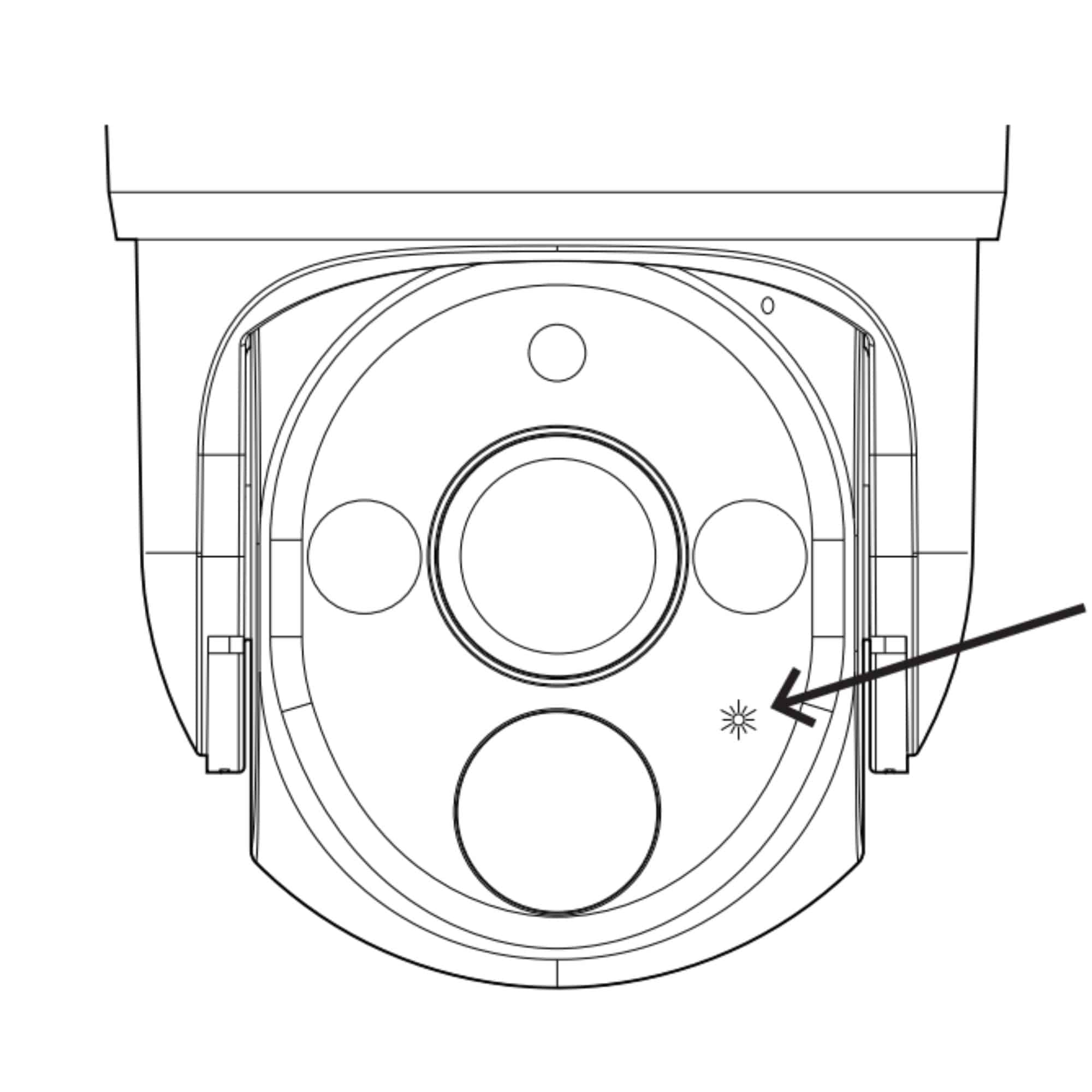

• Make sure that the camera LED is flashing red.
• If the light is off, charge the camera by connecting a 5V AC adapter or plug solar panel into the camera’s USB-C socket.

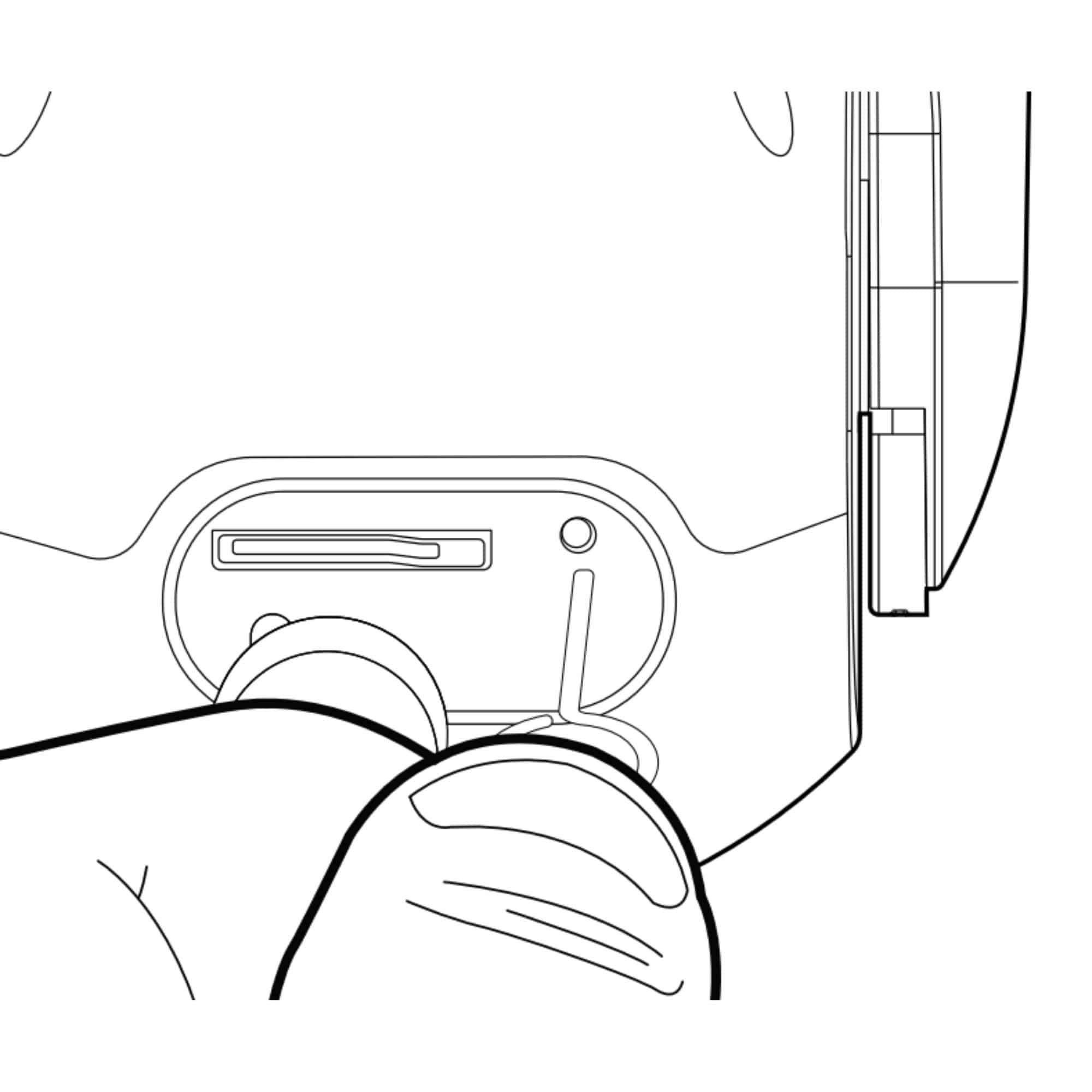

• If the LED is flashing blue, reset the camera by pressing the RESET button for 10 seconds until you hear 3 consecutive beeps.
• Make sure the red LED is flashing.

• Open the AvidsenHome application
• Click on then on “Add a device”.

• The camera appears at the top of the addition banner.

Sf the camera is not seen by the application, reset it. If the camera still doesn’t appear, go to your smartphone’s authorizations and check that “Nearby devices” or “Visible to other devices” is enabled.

For more information, see the tutorial Application authorization

• Click on “Add

• Check for the presence of a network name (SSID) to the right of the symbol

If the network name does not appear, consult the tutorial Application authorization

• Enter your Internet box’s WIFI key.

Please note that the Wifi key is not the administration key for your Internet box.

• Click on “Next

• LiveBox 4 = The wifi key is visible by clicking on the i on the front of your Livebox.
• LiveBox 5 = The wifi key is located on the identification card and also on the label on the back of your Livebox.
• LiveBox 6 = The wifi key is visible in the Wifi settings accessible from the front screen.

• SFR NB6/NB7/NB8 = The wifi key is located on the label on the back of your SFRBox.

• Bbox Miami/ 4K = The wifi key is located on the label on the back of your Bbox. It is the code written on the WPA line.

Valid for Freebox Delta/Pop/Révolution/mini/One/4G+/Crystal

• Please download the “Freebox Connect” application available on the AppStore and Google Playstore.
• Select your Freebox model and log in.
• The wifi key for your Freebox is located in the “My Wifi Access” menu.

• Wait for the camera to come online.
• Ѕі lа саmérа а rеçu dеѕ іnfоrmаtіоnѕ, the light will flash blue
• Еn саѕ d’еrrеur dе ѕаіѕіе dе lа сlé wіfі оu dе wіfі іnсоmраtіblе, lа саmérа rеdémаrrеrа and will emit a restart melody.
• Еn саѕ of іnfоrmаtіоn vаlіdе, lе vоуаnt blеu ѕеrа fіхе.

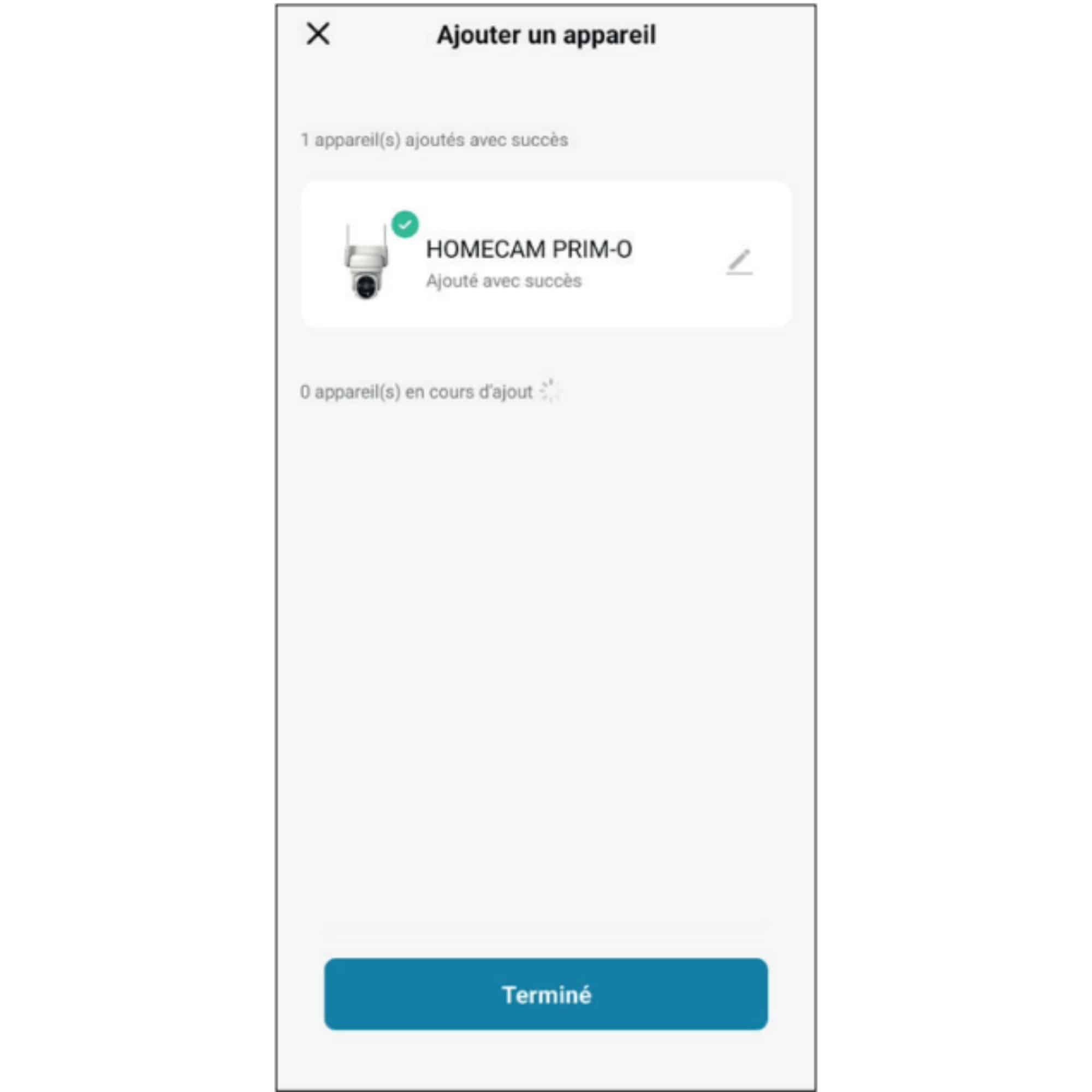

• Once the camera is connected, this page appears on the application.

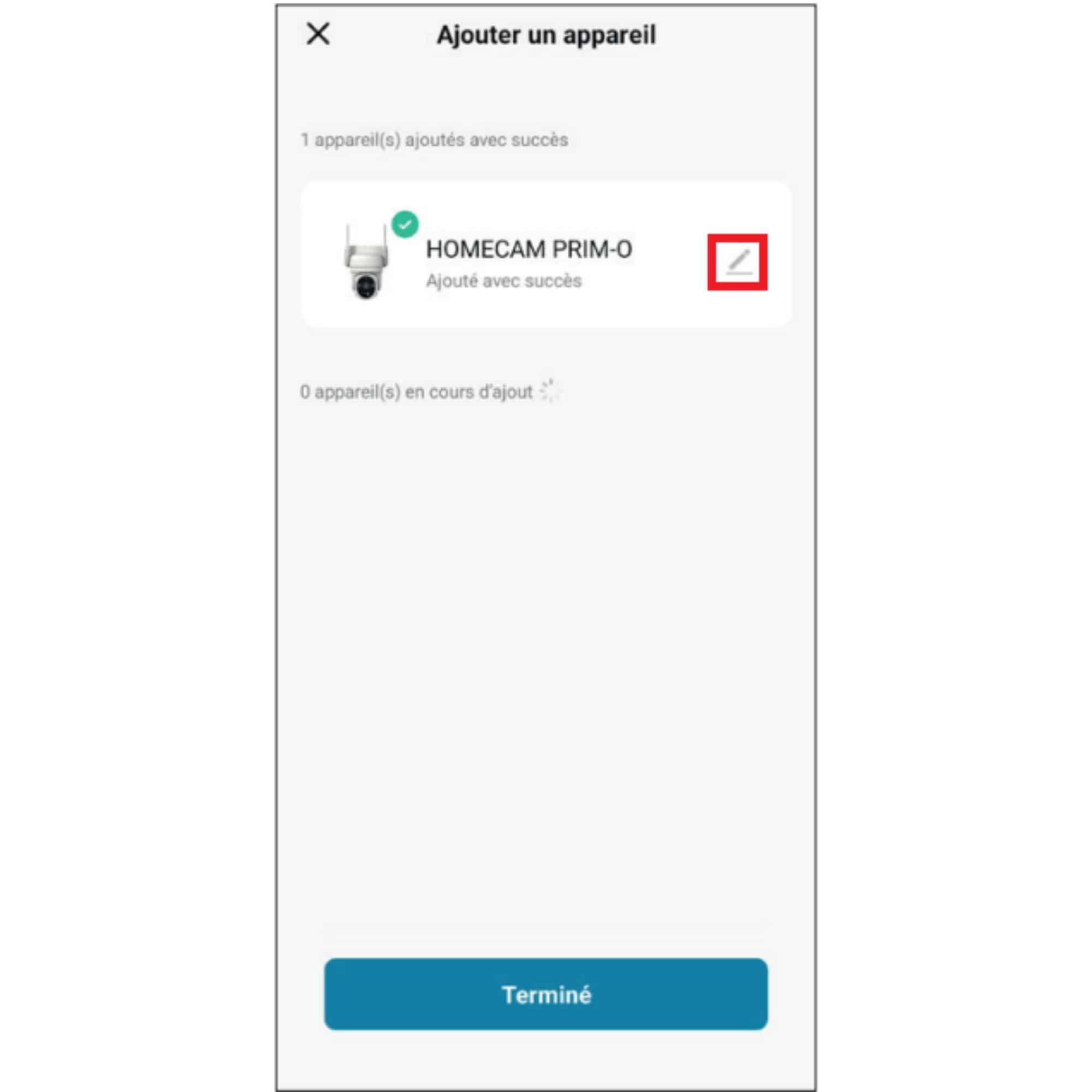

• If you wish to rename the camera, click on the symbol
• If you do not wish to rename the camera, click on “Done”.

• Rename the camera with the desired name.

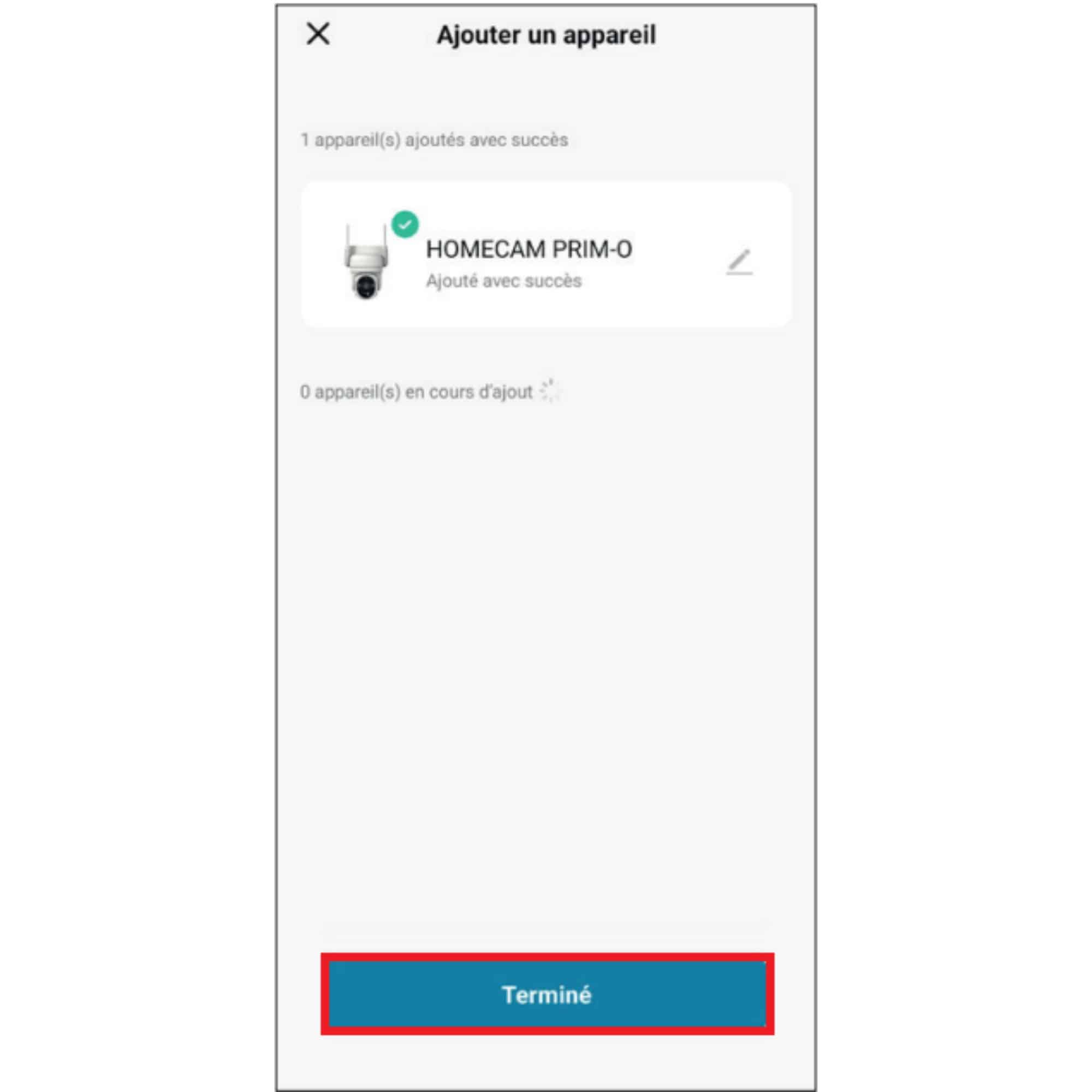

• Click on Done to finalize the camera’s upload to the application.
